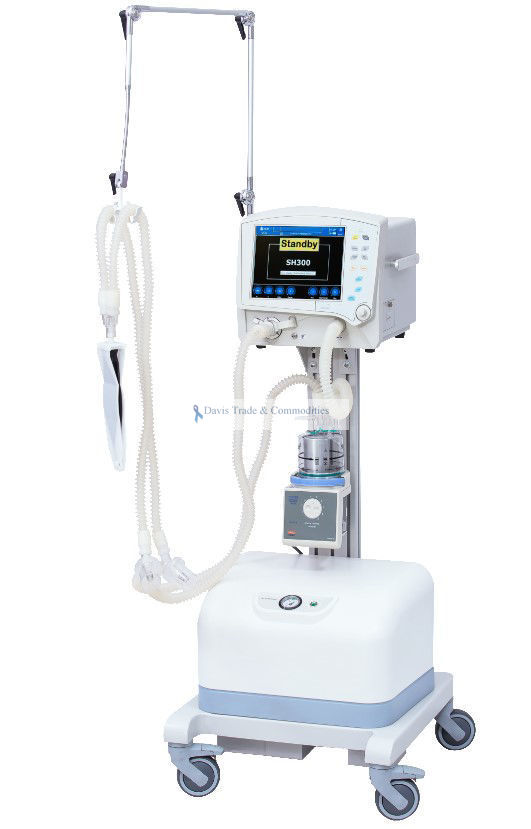

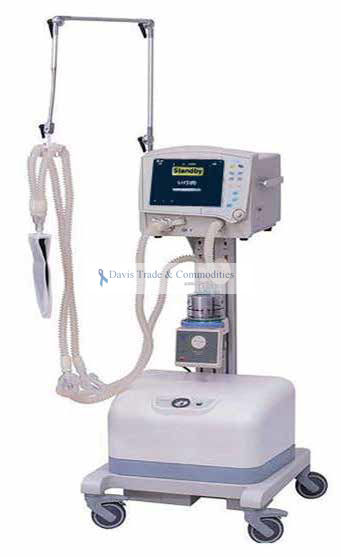

SH300 ICU Invasive Ventilator

Basic specification

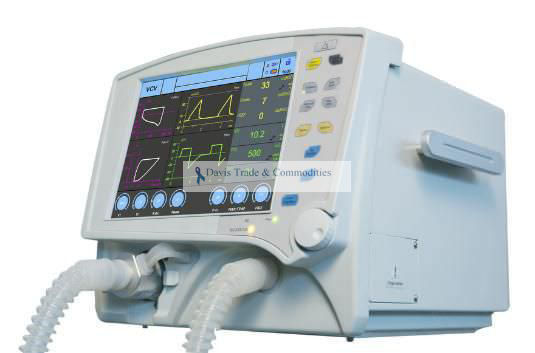

Display: 10.4 TFT touch screen
Type: pneumatically driven
tronic control
Gas supply: medical O2, medical air
Pneumatic system
Safe pressure: ≤125cmH2O
Power supply: AC 110-240V, 50-60Hz
Battery: L hium battery, backup
For more than 2 hours
Weight (net): 16KG
Dimension: (H)400X(W)303X(L)250mm
Monitoring specification
VTI, VTE, MV, MVspn
Fspn, Frequency, I :E
Ppeak, Pmean, Pplat, Pmin, PEEP
FiO2
Compliance, Resistance
Waveforme : P-T,F-T,V-T,
Loops : P-V loop, V-F loop
