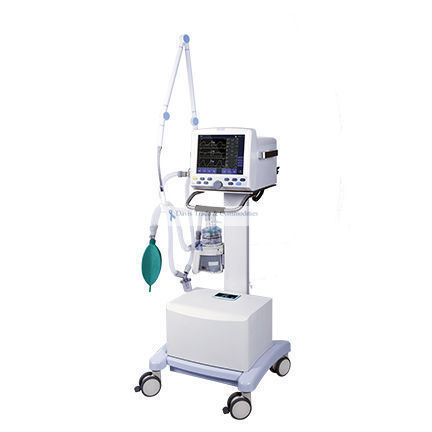

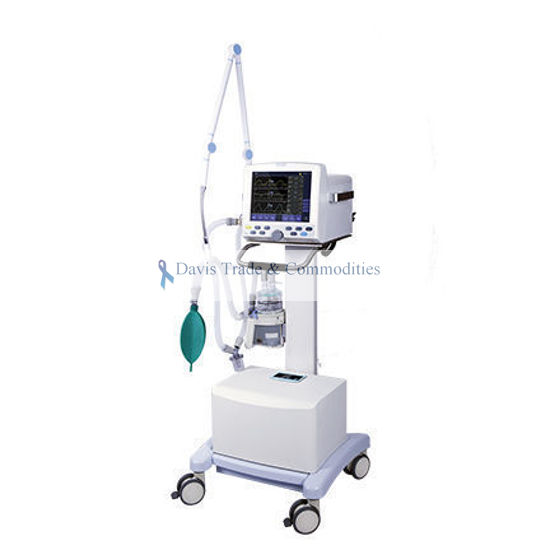

R50 ICU Ventilator

CE / TUV- Certified - Not for US Product Features Pneumatically driven and electronically controlled ICU ventilator Widely usage range: Sultable for Infants and adults Total Volume setting 20--2500 mL Sufficient modes cf Ventilation: VCV, PCY, SIMV-VC, SIMV-PC, Optional: PRVC, SIMV-PRVC, VS, DuoPhasic, APRV Friendly user interface: TFT color screen with touch screen Knob and Hard key input Easy to position ergonomic trolley with two brake Easily removable and sterilizable the modular exhalation valve and flow sensor

Be the first to review this product

SKU: VE1015AN01

$36,511.11

excluding shipping

This product has a minimum quantity of 10

Qty:

CE / TUV- Certified - Not for US

Good integration

Built-in active explratory PEEP valve
Bullt-in O2 & Air mixture device
Built-in synchronized nebulizer
Built-in battery (≥ 90 mins)
Optional EtCO2 monitoring module
Lung mechanics parameters and loops
Inspiratory hold with static compliance measurements
Expiratory hold with PEEPi measurements
Manual inspiration
100% O2 suction

Technical Parameters

Built-in active exploratory PEEP valve
Built-in O2 & Air mixture device
Built-in synchronized nebulizer
Built-in battery (≥ 90 mins)

Optional EtCO2 monitoring module
Lung mechanics parameters and loops
Inspiratory hold with static compliance measurements
Expiratory hold with PEEPi measurements
Manual inspiration
100% O2 suction
Pneumatically driven and electronically controlled ICU
ventilator.
Widely usage range: Sultable for Infants and adults
Total Volume setting 20--2500 mL
Sufficient modes cf Ventilation: VCV, PCY, SIMV-VC, SIMVPC,
Optional: PRVC, SIMV-PRVC, VS, DuoPhasic, APRV
Friendly user interface: TFT color screen with touch screen
Knob and Hard key input
Easy to position ergonomic trolley with two brake
Easily removable and sterilizable the modular exhalation
valve and flow sensor
