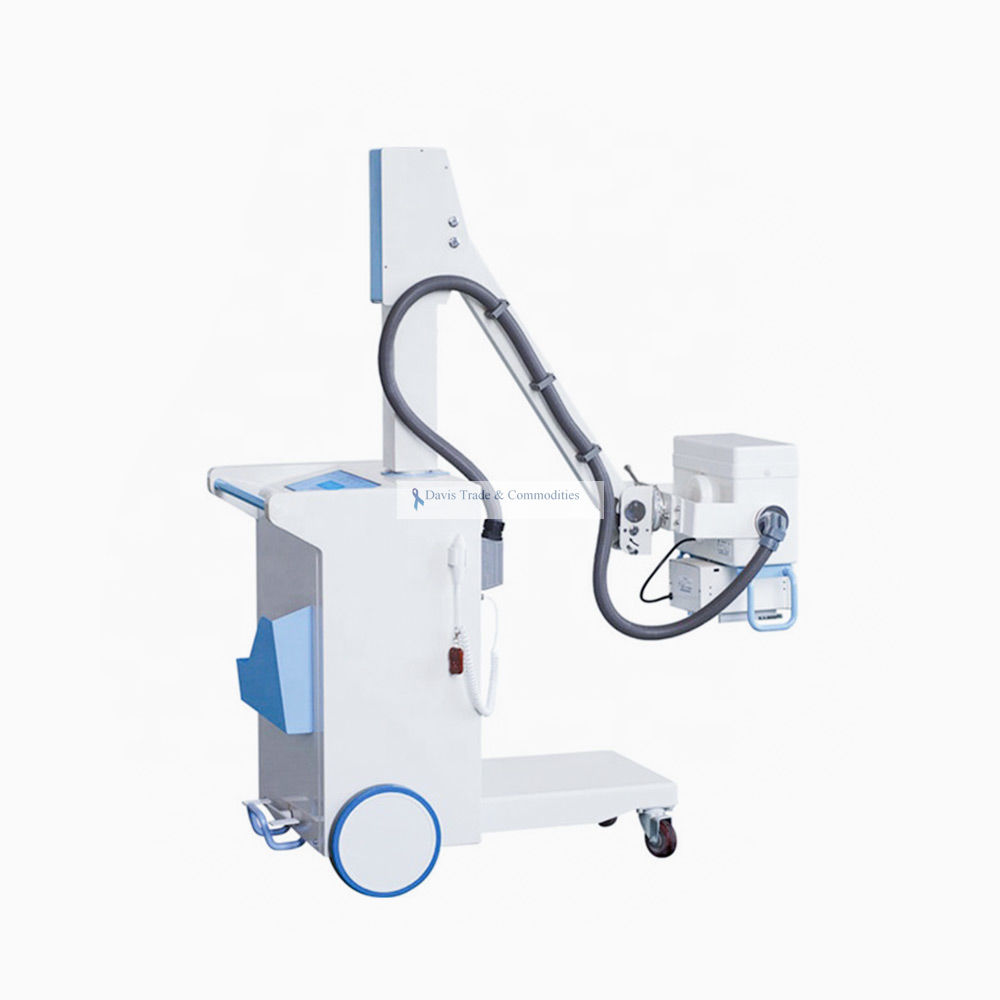

BT X-Ray Machine

Usage: The machine is combined high-frequency X-ray photography diagnostic equipment, which is used in radiology, orthopedics, wards, emergency rooms, operating rooms, and ICU, etc. It is mobile diagnostic equipment which can make radiography on human body, such as head, limbs, chest and spine. The machine is especially suitable for photography without power supply, such as special outdoor environment and emergent incidents.
SKU: MT1001AN01
excluding shipping
This product has a minimum quantity of 25


Power Output: 5KW
Main Inverter frequency: 50 KHz
X-ray Tube: fixed anode focus: 1.5 (X-ray tube for high frequency)
Tube Voltage: 40kV~~120KV (interval 1KV)

Tube Current
40~49kV 100mA 1~180mAs
50~59kV 77mA 1~140mAs
60~69kV 64mA 1~125mAs
70~79kV 55mA 1~110mAs
80~89kV 49mA 1~100mAs
90~99kV 44mA 1~80mAs
100~109kV 32mA 1~63mAs
110~120kV 25mA 1~50mAs

mAs 1.0~180mAs (46steps)

Power Supply: 220V±10% 50Hz Inner-resistance ≤1.0Ω
Operation Method: Wire/wireless control

With new design of compact appearance and flexible movement, it owns all the advantages of high frequency mobile x-ray photography machine.
It adopts the patent technology of automatic and single-arm support. The appearance is more beautiful and operation is more convenient.
With high frequency inverter to emit high quality X-ray and low dose on skin, and ensure excellent definition and contrast of pictures
With techniques of KV analog closed loop control, mAs digital closed loop control and micro-processing real-time control to ensure precision and repeatability of the dose.
With kV, mAs two button adjustment, LCD display, multifunction of safety guard.
With 50 preset exposure programs, and can be modified and stored by the user for convenient operation.
With a high-quality knockdown X-ray generator to reduce irradiation, it is much safer to environment and operator.
With fault automatic protection setting and fault alarming display
The system can keep parameters automatic, in case losing data.
With a rotating beam limiting device to adjust the X-ray field and angle, so it can ensure accurate radiography results.
With high kV function, it has wide using range and good effect of photography.
The rocker can whirl to left and right in ±90°, so photography polarization is convenient and swift.
With high-performance high-capacity chargeable battery, it can take 200 films without power supply for once charging. The machine is especially suitable for photography without power supply, such as special outdoor environment and emergent incidents.
Manual control and remote control are used to expose. Wireless remote exposure control can penetrate barriers, which makes operation more convenient.
