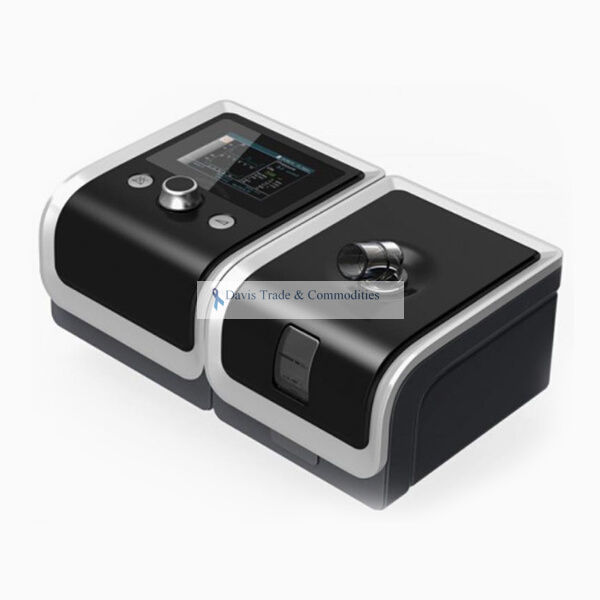

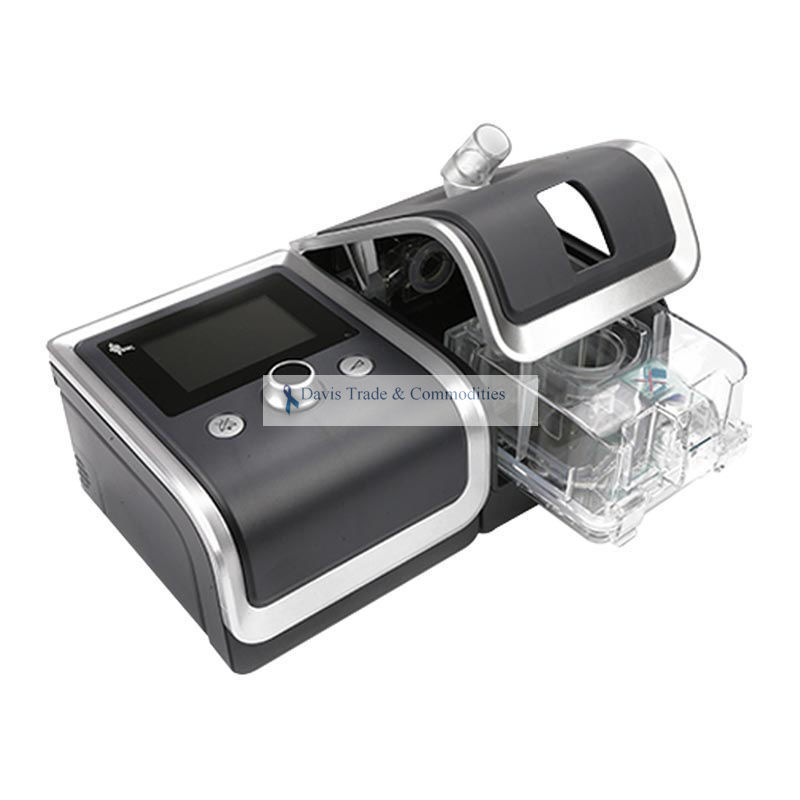

30T BPAP Bi-Level Ventilator

EUA (FDA) Cleared CE - Approved
SKU: VE1001AN01
excluding shipping
This product has a minimum quantity of 100

Main Features

This BPAP System Y-30T Machine with target tidal volume
function and the back breath rate is the best options for
noninvasive ventilation for adult patients with Respiratory
Insufficiency at hospital environment.
These Bi-Level devices have two distinct, settable pressures
which satisfied patient's needs. This is known as spontaneous
BiLevel for more complicated pulmonary disorders patients like
chronic obstructive pulmonary disease, emphysema, etc.
IPAP pressure: 4 – 30 cmH2O
EPAP pressure: 4 – 25 cm2O
Breath Rate: 3 – 40 BPM
Target Vt: on/off – 150 – 1500mL
Rise time: 1 – 4
I Sens: 1 – 8
E Sens: 1 – 8
Ti: 0.3 – 3.0s
Screen size: 3.5inch LCD
Weight: 1.5 kg – 2.5kg (with Humidifier)
Dimensions: 290 X 180 X 134 mm (with Humidifier)
Sound: <30 dB (at level 10chH2O)
Supplement Oxygen: optional with oxygen side port
AC input: 100-240V, 50-60Hz Class II
Class II, Type BF

Available in stock 1,000 pcs
Ready to be shipped immediately
